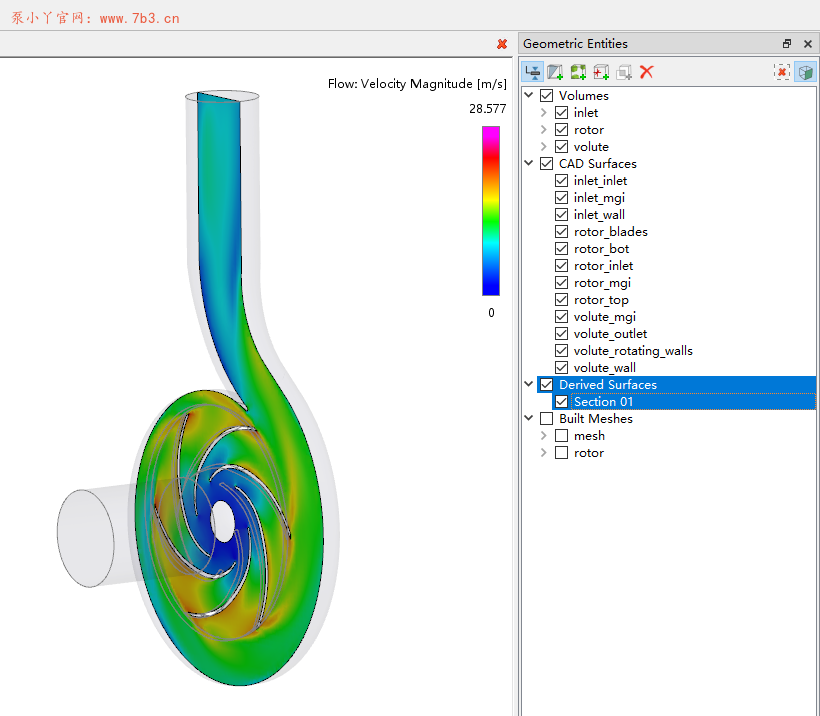

在默认设置情况下,我们在求解过程中创建一个切面来看截面上的云图时,你会发现它除了显示截面外还有整个模型的透视,这个不仅影响观感,截图后也不方便用,所以我们需要关闭这些显示项。
![Simerics MP+6.0如何隐藏模型轮廓显示](https://img.7b3.cn/7b3/2024/07/20240716064724251.png?imageView2/0/interlace/1/q/75|watermark/2/text/5rO15bCP5Lir5a6Y572R77yad3d3LjdiMy5jbg==/font/5qW35L2T/fontsize/300/fill/I0U5MzQxMQ==/dissolve/80/gravity/NorthWest/dx/10/dy/10|imageslim)
1、关闭模型透视显示

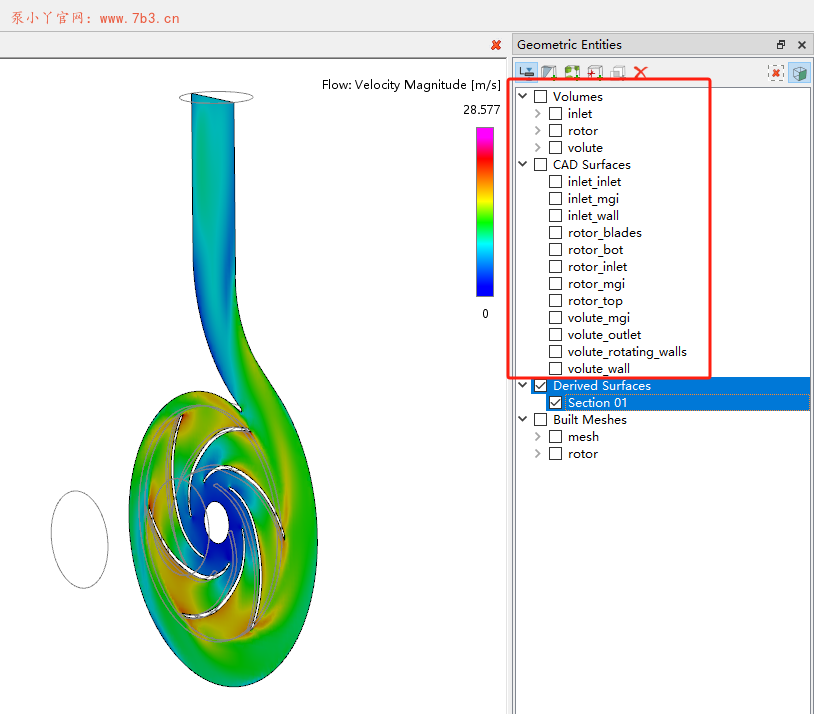

只需要将右侧的Volumes和CAD Surfaces前面的对勾取消勾选就行了,见下图。
![Simerics MP+6.0如何隐藏模型轮廓显示](https://img.7b3.cn/7b3/2024/07/20240716065022763.png?imageView2/0/interlace/1/q/75|watermark/2/text/5rO15bCP5Lir5a6Y572R77yad3d3LjdiMy5jbg==/font/5qW35L2T/fontsize/300/fill/I0U5MzQxMQ==/dissolve/80/gravity/NorthWest/dx/10/dy/10|imageslim)
2、关闭模型轮廓线显示

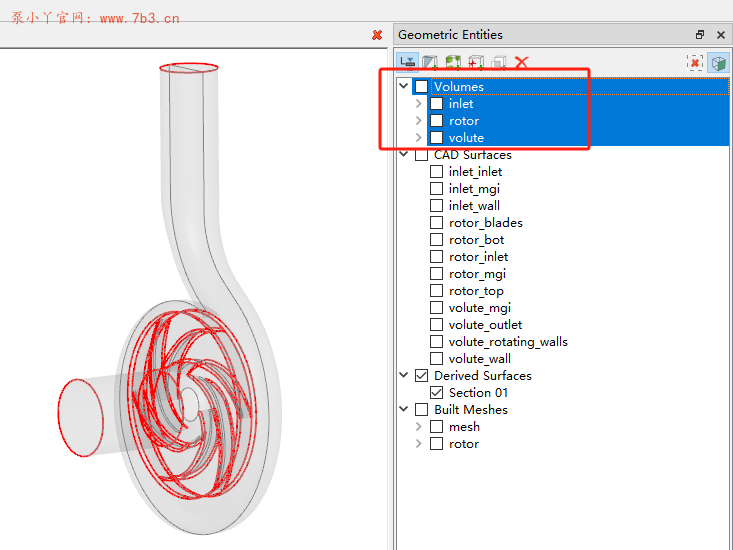

首先鼠标左键点击右侧的Volumes,如下图所示,然后在左下角的
![Simerics MP+6.0如何隐藏模型轮廓显示](https://img.7b3.cn/7b3/2024/07/20240716065239704.png?imageView2/0/interlace/1/q/75|watermark/2/text/5rO15bCP5Lir5a6Y572R77yad3d3LjdiMy5jbg==/font/5qW35L2T/fontsize/300/fill/I0U5MzQxMQ==/dissolve/80/gravity/NorthWest/dx/10/dy/10|imageslim)

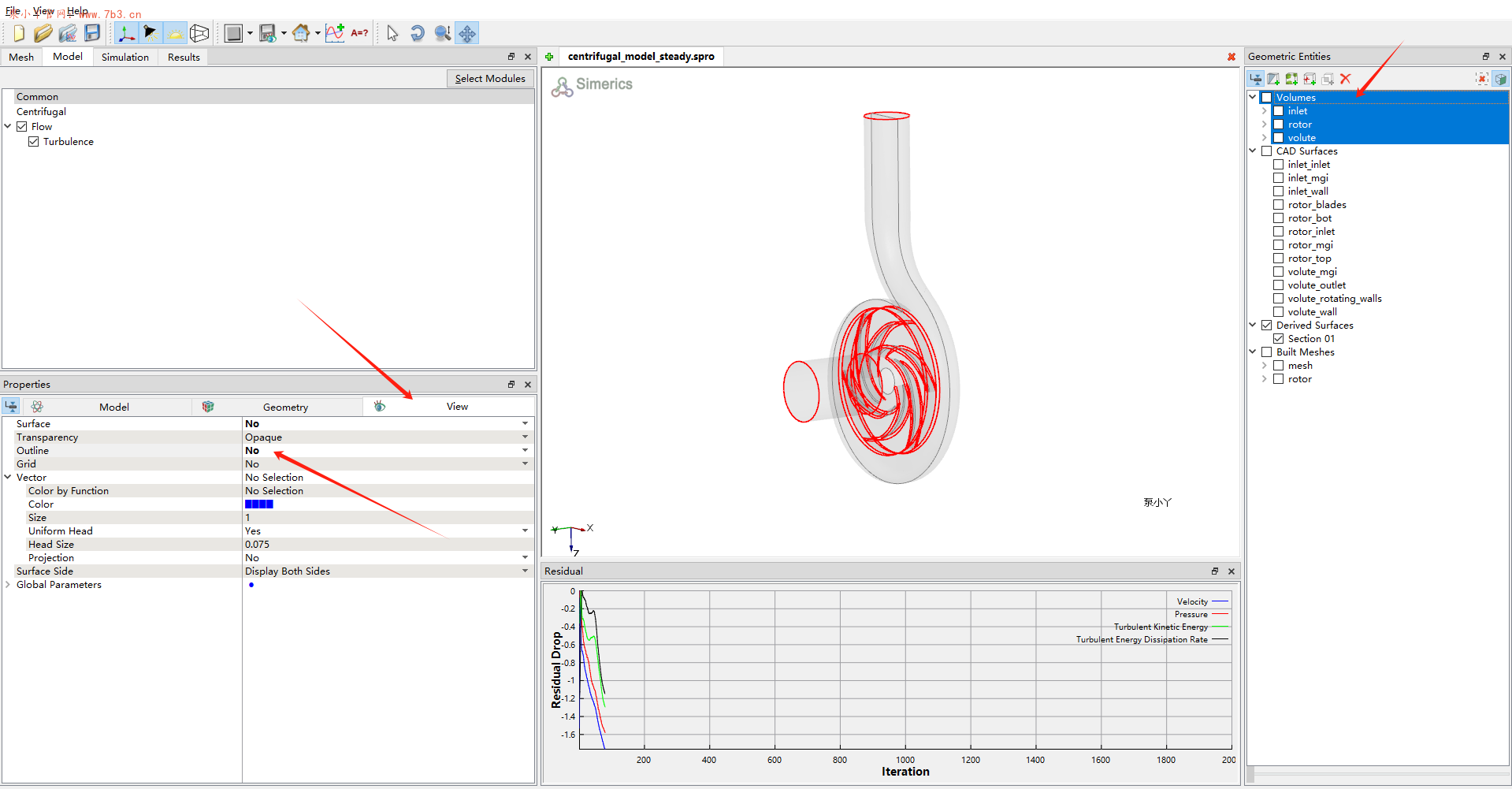

然后在左下角的Properties栏中切换到View选项,找到Outline,将右侧的Yes修改为No即可!
![Simerics MP+6.0如何隐藏模型轮廓显示](https://img.7b3.cn/7b3/2024/07/20240716065322466.png?imageView2/0/interlace/1/q/75|watermark/2/text/5rO15bCP5Lir5a6Y572R77yad3d3LjdiMy5jbg==/font/5qW35L2T/fontsize/300/fill/I0U5MzQxMQ==/dissolve/80/gravity/NorthWest/dx/10/dy/10|imageslim)
![Simerics MP+6.0如何隐藏模型轮廓显示](https://img.7b3.cn/7b3/2024/07/20240716065601545.png?imageView2/0/interlace/1/q/75|watermark/2/text/5rO15bCP5Lir5a6Y572R77yad3d3LjdiMy5jbg==/font/5qW35L2T/fontsize/300/fill/I0U5MzQxMQ==/dissolve/80/gravity/NorthWest/dx/10/dy/10|imageslim)

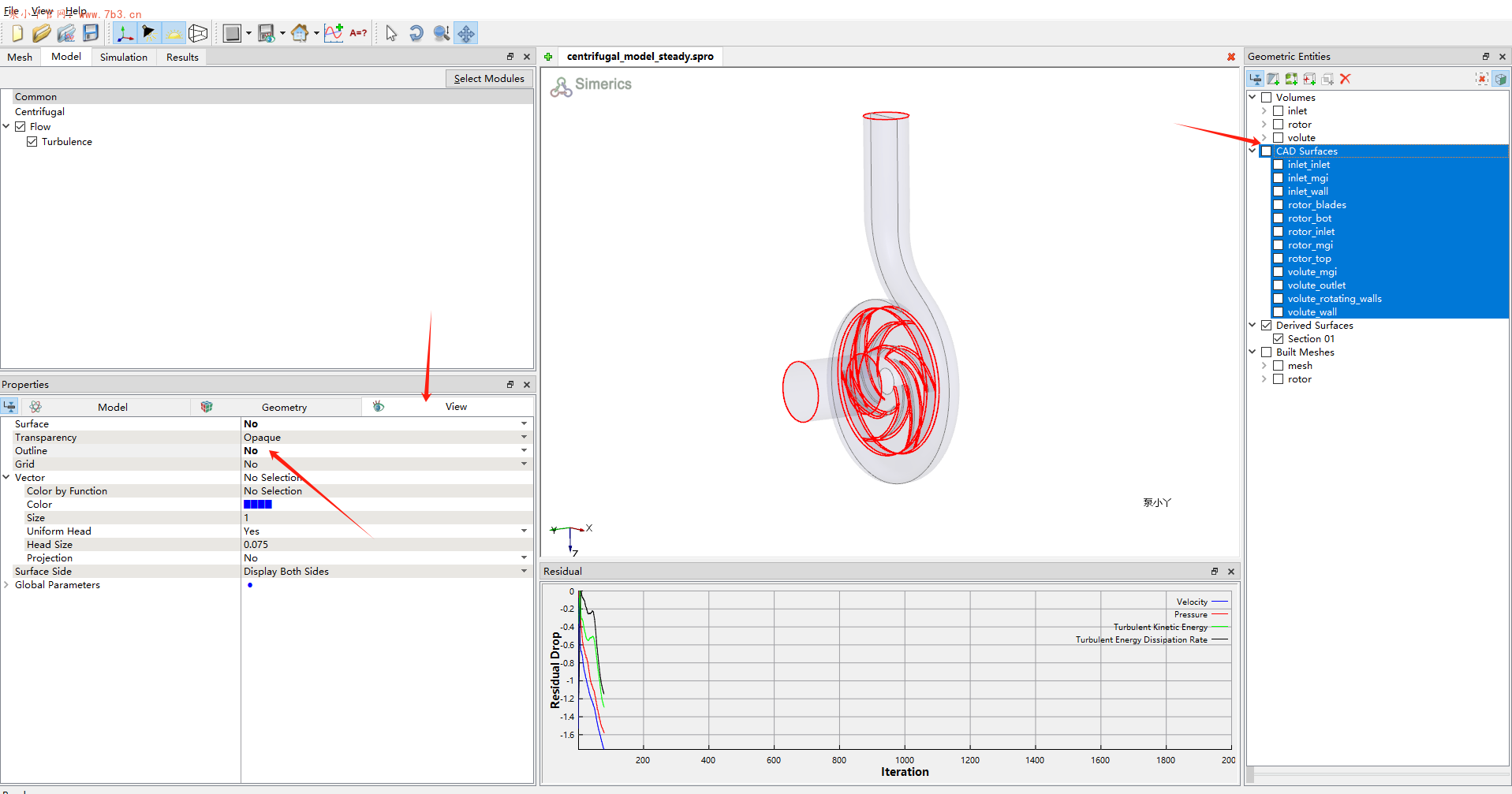

改完之后你会发现没有变化,同理需要将右侧的CAD Surfaces里边的OutlineYes修改为No即可!
![Simerics MP+6.0如何隐藏模型轮廓显示](https://img.7b3.cn/7b3/2024/07/20240716065628791.png?imageView2/0/interlace/1/q/75|watermark/2/text/5rO15bCP5Lir5a6Y572R77yad3d3LjdiMy5jbg==/font/5qW35L2T/fontsize/300/fill/I0U5MzQxMQ==/dissolve/80/gravity/NorthWest/dx/10/dy/10|imageslim)

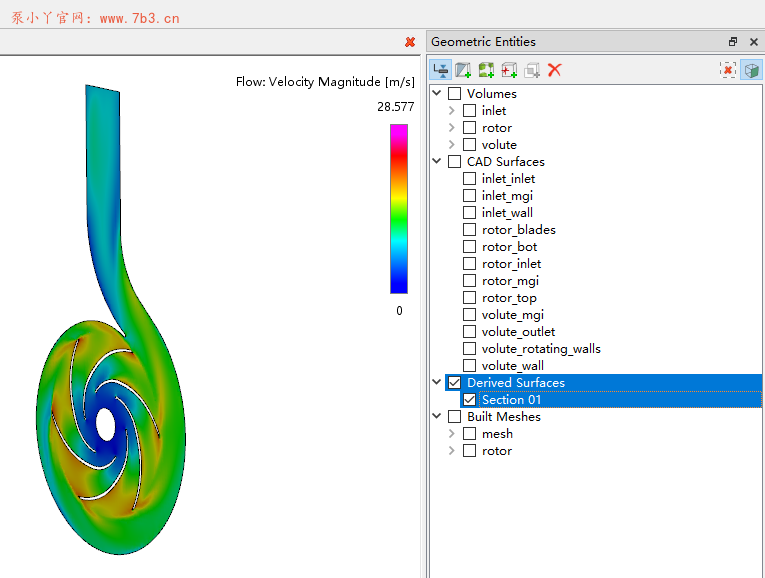

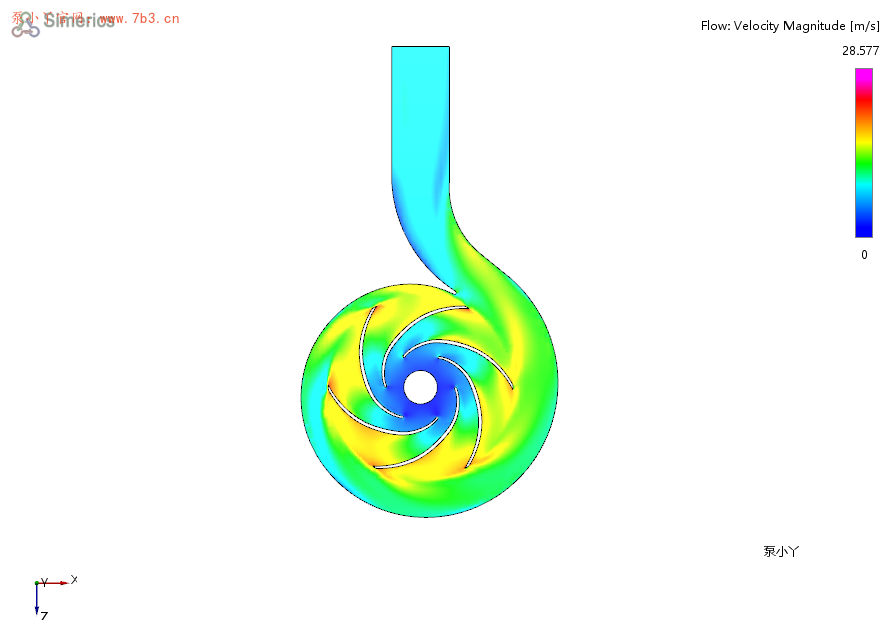

最后我们再单独勾选前面创建的切面显示云图,就很干净舒服了
![Simerics MP+6.0如何隐藏模型轮廓显示](https://img.7b3.cn/7b3/2024/07/20240716065713699.png?imageView2/0/interlace/1/q/75|watermark/2/text/5rO15bCP5Lir5a6Y572R77yad3d3LjdiMy5jbg==/font/5qW35L2T/fontsize/300/fill/I0U5MzQxMQ==/dissolve/80/gravity/NorthWest/dx/10/dy/10|imageslim)
![Simerics MP+6.0如何隐藏模型轮廓显示](https://img.7b3.cn/7b3/2024/07/20240716065738412.png?imageView2/0/interlace/1/q/75|watermark/2/text/5rO15bCP5Lir5a6Y572R77yad3d3LjdiMy5jbg==/font/5qW35L2T/fontsize/300/fill/I0U5MzQxMQ==/dissolve/80/gravity/NorthWest/dx/10/dy/10|imageslim)
简单小知识。
